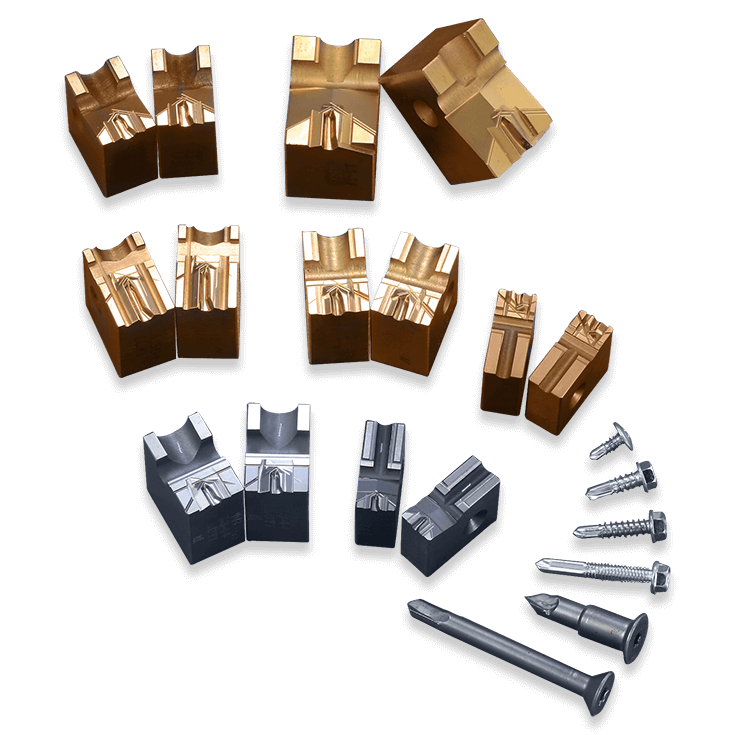

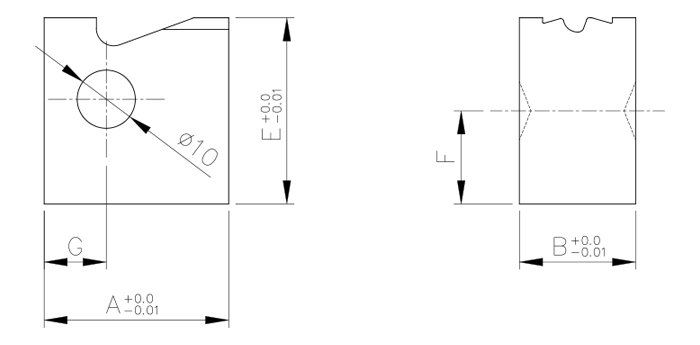

NO .1 鑽尾模具
| DP DIE 碼 |

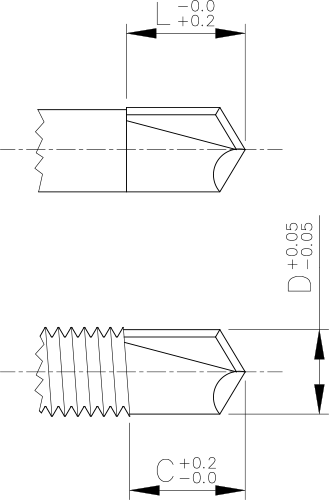

鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L1-22 |
2.2 |
2.7 |
1.7 |
1.0 |
STYLE I
STYLE II |
| L1-23 |
2.3 |
2.7 |
1.7 |
1.0 |
STYLE I
STYLE II |
| L1-27 |
2.7 |
3.4 |
2.4 |
1.5 |
STYLE I
STYLE II |
| L1-28 |
2.8 |
3.4 |
2.4 |
1.5 |
STYLE I
STYLE II |
| L1-29 |
2.9 |
3.4 |
2.4 |
1.5 |
STYLE I
STYLE II |
| L1-30 |
3.0 |
3.4 |
2.4 |
1.5 |
STYLE I
STYLE II |
| L1-31 |
3.1 |
3.4 |
2.4 |
1.5 |
STYLE I
STYLE II |
| L1-32 |
3.2 |
4.2 |
3.2 |
2.1 |
STYLE I
STYLE II |
| L1-33 |
3.3 |
4.2 |
3.2 |
2.1 |
STYLE I
STYLE II |
| L1-34 |
3.4 |
4.2 |
3.2 |
2.1 |
STYLE I
STYLE II |
| L1-35 |
3.5 |
4.2 |
3.2 |
2.1 |
STYLE I
STYLE II |
| L1-36 |
3.6 |
4.2 |
3.2 |
2.1 |
STYLE I
STYLE II |
| L1-37 |
3.7 |
5.0 |
4.0 |
2.8 |
STYLE I
STYLE II |
| L1-38 |
3.8 |
5.0 |
4.0 |
2.8 |
STYLE I
STYLE II |
| L1-39 |
3.9 |
5.0 |
4.0 |
2.8 |
STYLE I
STYLE II |
| L1-40 |
4.0 |
5.0 |
4.0 |
2.8 |
STYLE I
STYLE II |
| L1-41 |
4.1 |
5.0 |
4.0 |
2.8 |
STYLE I
STYLE II |
| L1-43 |
4.3 |
6.0 |
5.0 |
3.6 |
STYLE II |
| L1-45 |
4.5 |
6.0 |
5.0 |
3.6 |
STYLE II |
| L1-47 |
4.7 |
6.0 |
5.0 |
3.6 |
STYLE II |
| L1-49 |
4.9 |
7.2 |
6.2 |
4.5 |
STYLE II |
| L1-51 |
5.1 |
7.2 |
6.2 |
4.5 |
STYLE II |
| L1-53 |
5.3 |
7.2 |
6.2 |
4.5 |
STYLE II |
| L1-55 |
5.5 |
7.2 |
6.2 |
4.5 |
STYLE II |
| L1-57 |
5.7 |
7.2 |
6.2 |
4.5 |
STYLE II |
NO .2 鑽尾模具
| DP DIE 碼 |
鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L2-22 |
2.2 |
3.2 |
2.2 |
1.5 |
STYLE I
STYLE II |
| L2-23 |
2.3 |
3.2 |
2.2 |
1.5 |
STYLE I
STYLE II |
| L2-27 |
2.7 |
4.0 |
3.0 |
2.1 |
STYLE I
STYLE II |
| L2-28 |
2.8 |
4.0 |
3.0 |
2.1 |
STYLE I
STYLE II |
| L2-29 |
2.9 |
4.0 |
3.0 |
2.1 |
STYLE I
STYLE II |
| L2-30 |
3.0 |
4.0 |
3.0 |
2.1 |
STYLE I
STYLE II |
| L2-31 |
3.1 |
4.0 |
3.0 |
2.1 |
STYLE I
STYLE II |
| L2-32 |
3.2 |
4.9 |
3.9 |
2.8 |
STYLE I
STYLE II |
| L2-33 |
3.3 |
4.9 |
3.9 |
2.8 |
STYLE I
STYLE II |
| L2-34 |
3.4 |
4.9 |
3.9 |
2.8 |
STYLE I
STYLE II |
| L2-35 |
3.5 |
4.9 |
3.9 |
2.8 |
STYLE I
STYLE II |
| L2-36 |
3.6 |
4.9 |
3.9 |
2.8 |
STYLE I
STYLE II |
| L2-37 |
3.7 |
5.8 |
4.8 |
3.6 |
STYLE I
STYLE II |
| L2-38 |
3.8 |
5.8 |
4.8 |
3.6 |
STYLE I
STYLE II |
| L2-39 |
3.9 |
5.8 |
4.8 |
3.6 |
STYLE I
STYLE II |
| L2-40 |
4.0 |
5.8 |
4.8 |
3.6 |
STYLE I
STYLE II |
| L2-41 |
4.1 |
5.8 |
4.8 |
3.6 |
STYLE I
STYLE II |
| L2-43 |
4.3 |
6.9 |
5.9 |
4.5 |
STYLE II |
| L2-45 |
4.5 |
6.9 |
5.9 |
4.5 |
STYLE II |
| L2-47 |
4.7 |
6.9 |
5.9 |
4.5 |
STYLE II |
| L2-49 |
4.9 |
8.0 |
7.0 |
5.3 |
STYLE II |
| L2-51 |
5.1 |
8.0 |
7.0 |
5.3 |
STYLE II |
| L2-53 |
5.3 |
8.0 |
7.0 |
5.3 |
STYLE II |
| L2-55 |
5.5 |
8.0 |
7.0 |
5.3 |
STYLE II |
| L2-57 |
5.7 |
8.0 |
7.0 |
5.3 |
STYLE II |
NO .3 鑽尾模具
| DP DIE 碼 |
鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L3-27 |
2.7 |
4.7 |
3.7 |
2.8 |
STYLE I
STYLE II |
| L3-28 |
2.8 |
4.7 |
3.7 |
2.8 |
STYLE I
STYLE II |
| L3-29 |
2.9 |
4.7 |
3.7 |
2.8 |
STYLE I
STYLE II |
| L3-30 |
3.0 |
4.7 |
3.7 |
2.8 |
STYLE I
STYLE II |
| L3-31 |
3.1 |
4.7 |
3.7 |
2.8 |
STYLE I
STYLE II |
| L3-32 |
3.2 |
5.7 |
4.7 |
3.6 |
STYLE I
STYLE II |
| L3-33 |
3.3 |
5.7 |
4.7 |
3.6 |
STYLE I
STYLE II |
| L3-34 |
3.4 |
5.7 |
4.7 |
3.6 |
STYLE I
STYLE II |
| L3-35 |
3.5 |
5.7 |
4.7 |
3.6 |
STYLE I
STYLE II |
| L3-36 |
3.6 |
5.7 |
4.7 |
3.6 |
STYLE I
STYLE II |
| L3-37 |
3.7 |
6.7 |
5.7 |
4.5 |
STYLE I
STYLE II |
| L3-38 |
3.8 |
6.7 |
5.7 |
4.5 |
STYLE I
STYLE II |
| L3-39 |
3.9 |
6.7 |
5.7 |
4.5 |
STYLE I
STYLE II |
| L3-40 |
4.0 |
6.7 |
5.7 |
4.5 |
STYLE I
STYLE II |
| L3-41 |
4.1 |
6.7 |
5.7 |
4.5 |
STYLE I
STYLE II |
| L3-43 |
4.3 |
7.7 |
6.7 |
5.3 |
STYLE II |
| L3-45 |
4.5 |
7.7 |
6.7 |
5.3 |
STYLE II |
| L3-47 |
4.7 |
7.7 |
6.7 |
5.3 |
STYLE II |
| L3-49 |
4.9 |
9.0 |
8.0 |
6.3 |
STYLE II |
| L3-51 |
5.1 |
9.0 |
8.0 |
6.3 |
STYLE II |
| L3-53 |
5.3 |
9.0 |
8.0 |
6.3 |
STYLE II |
| L3-55 |
5.5 |
9.0 |
8.0 |
6.3 |
STYLE II |
| L3-57 |
5.7 |
9.0 |
8.0 |
6.3 |
STYLE II |
NO .4 鑽尾模具
| DP DIE 碼 |
鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L4-43 |
4.3 |
8.7 |
7.7 |
6.3 |
STYLE II |
| L4-45 |
4.5 |
8.7 |
7.7 |
6.3 |
STYLE II |
| L4-47 |
4.7 |
8.7 |
7.7 |
6.3 |
STYLE II |
| L4-49 |
4.9 |
11.7 |
10.2 |
9.0 |
STYLE III |
| L4-51 |
5.1 |
11.7 |
10.2 |
9.0 |
STYLE III |
| L4-53 |
5.3 |
11.7 |
10.2 |
9.0 |
STYLE III |
| L4-55 |
5.5 |
11.7 |
10.2 |
9.0 |
STYLE III |
| L4-57 |
5.7 |
11.7 |
10.2 |
9.0 |
STYLE III |
NO .5 鑽尾模具
| DP DIE 碼 |
鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L5-49 |
4.9 |
14.7 |
13.7 |
12.0 |
STYLE III |
| L5-51 |
5.1 |
14.7 |
13.7 |
12.0 |
STYLE III |
| L5-53 |
5.3 |
14.7 |
13.7 |
12.0 |
STYLE III |
| L5-55 |
5.5 |
14.7 |
13.7 |
12.0 |
STYLE III |
| L5-57 |
5.7 |
14.7 |
13.7 |
12.0 |
STYLE III |
NO .6 鑽尾模具
| DP DIE 碼 |
鑽孔大小 (DØ) |
鑽身長度 (L) |
鑽頭長度 (C) |
最大材料厚度 |
鑽尾模式 |
| L6-49 |
4.9 |
17.7 |
16.7 |
15.0 |
STYLE III |
| L6-51 |
5.1 |
17.7 |
16.7 |
15.0 |
STYLE III |
| L6-53 |
5.3 |
17.7 |
16.7 |
15.0 |
STYLE III |
| L6-55 |
5.5 |
17.7 |
16.7 |
15.0 |
STYLE III |
| L6-57 |
5.7 |
17.7 |
16.7 |
15.0 |
STYLE III |
